Any individual Statistics table (e.g. Histogram Statistics, 2D Plot Statistics,...) can be customized to control which statistics get displayed, which gate gets displayed and also how it looks (i.e. border style, size,...). Said formatting options can be accessed by either of these two methods:



•Select the Statistics table and use the Format tab.

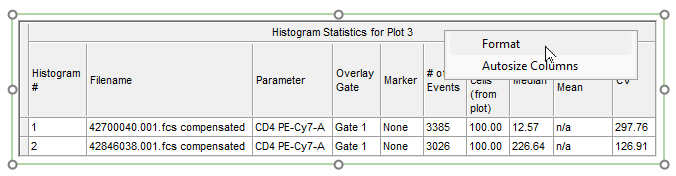

•Right-click on the Statistics table and select Format (Figure 11.7).









The following formatting options are available:



•Statistics (see below)

•Gates To Display (see below)

•Border/Line

•General

•Size

•Authorizations





Statistics

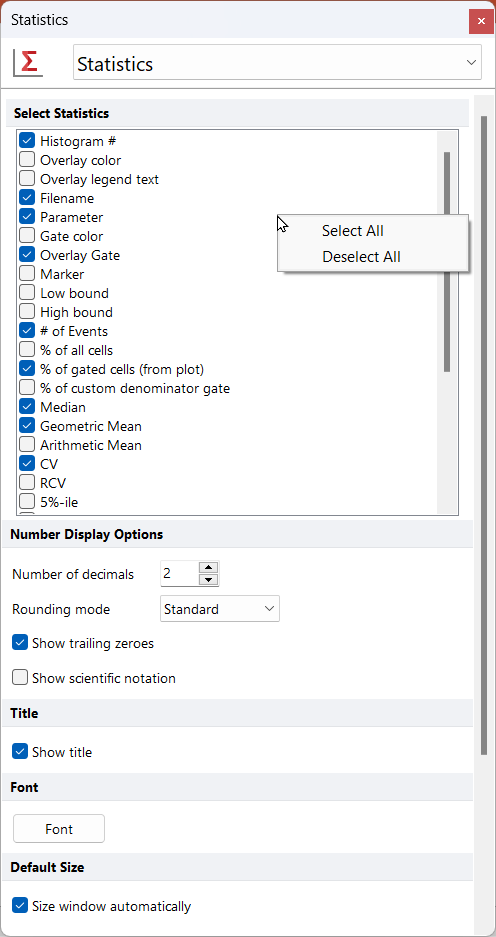

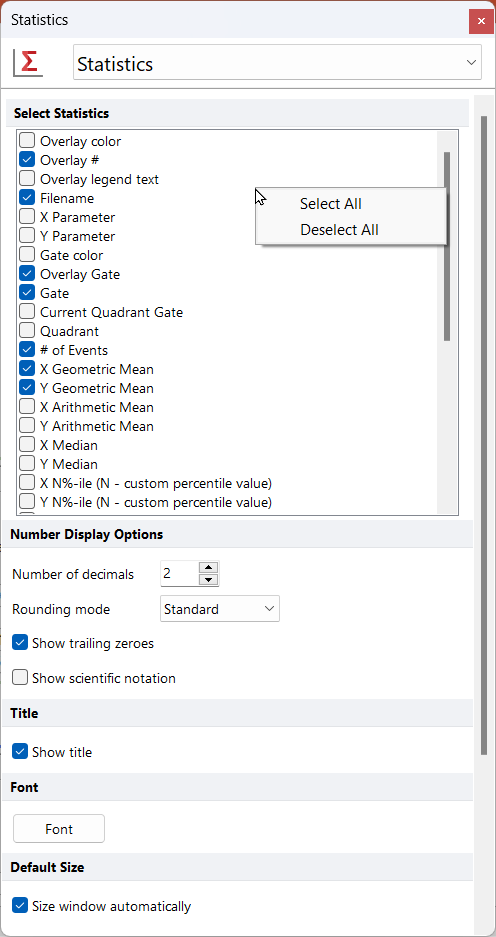

The Select Statistics list of the formatting options allows you to define which statistics get displayed in the selected Statistic table. Individually select/deselect each statistic you want to display by checking/unchecking the appropriate check box in the . You may also Select or Deselect All by right-clicking in the Select Statistics list (Figure 11.8).



Note: To set the default statistics that appear when you first open a statistics window, the number of decimals to display, and other statistic options, use the 1D Plot Statistics or the 2D Plot Statistics category in the User Default Options.









•The If there are markers on plot, also show statistics for the base overlay without the marker check box is only available for 1D Plot Statistics tables. It allows you to display statistics for the entire overlay with no marker applied.

•The Custom Denominator Gate Options drop-down menu allows you to select the Gate to use as denominator for the % of custom denominator gate statistics (see the 1D Plot Statistics and the 2D Plot Statistics chapters for more details).

•The Custom Percentile option allows you to define a Custom Percentile Value for the N%-ile (N - custom value). Decimal values are allowed.





Gates to Display



This option is only available for Gate Statistics tables and allows to define which gate(s) you would like to see statistics for.







Once the Gate to Display dialog is open, you select a gating scheme using the radio buttons among:

•No Gates (hide the Gates column) (this is the default setting)

•All gates

•Only the gates checked below and then select the gates whose colors you wish to display.

•All gates except those checked below and then choose the gates whose colors you do not wish to display.

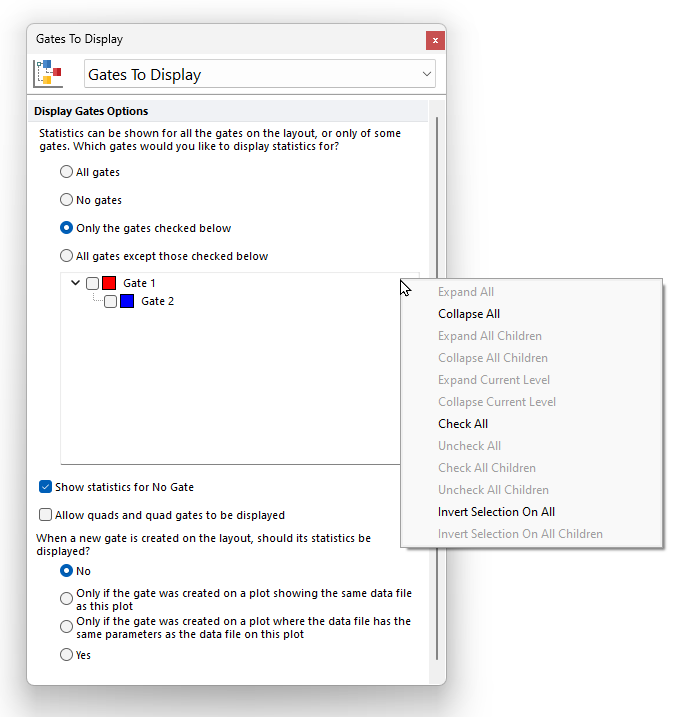

A right-click menu is available within the Gate to Display dialog as displayed in Figure 5.290 below. The right click menu allows users to:

•Expand/Collapse All gates

•Expand/Collapse All Children gates within the selected gate

•Expand/Collapse Current Level (this expand only the first level of children gates within the selected gate)

•Check/Uncheck All gates

•Check/Uncheck All Children gates within the selected gate

•Invert Selection on All gates

•Invert Selection on All Children gates within the selected gate





Show Statistics for No Gate. Check or uncheck this option to show or hide the No Gate root gate in the Gate Navigator



Allow quads and quad gates to be displayed. Check or uncheck this option to show or hide quadrants and quadrant gates in the Gate Statistics Table.



When a new gate is created on the layout, should its statistics be displayed? This option allows to choose how to display statistics when a new gate is created on the layoutis. This option is only available when the option Only the gates checked below is checked. The No option will be the default selection. However, you can change this setting if preferred. Possible choices are:

•No

•Display the statistics Only if the new gate was created on a plot showing the same data file as this plot (as the plot where the new gate was created),

•Display the statistics Only if the new gate was created on a plot where the data file has the same parameters as the data file as this plot (as the plot where the new gate was created).

•Yes
